2009 Polaris Industries Sportsman® 500 EFI
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.

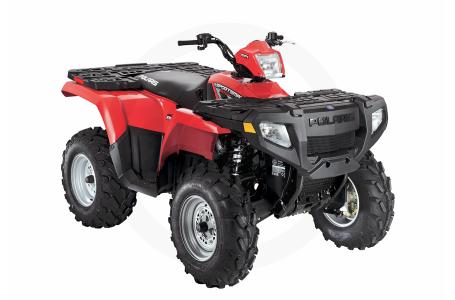

Indy Red (800 model shown)
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Best Selling Automatic 4x4 ATVs. Wheter you work, hunt or trail ride, this is the ATV that made the Sportsman® name famous. With EFI, this lengend is built for the perfect balance of work and play.

  • Electronic Fuel Injection (EFI) 500 ENGINE: Automatically adjusts to altitude and air temperature for faster starts, crisper throttle responses and better fuel economy.
  • All New Active Descent Control (ADC): Work together with Sportsman's Engine Braking System (EBS) to give you optimum control when moving down hills and steep inclines.
  • Independent Rear Suspension (IRS): The heart of what makes a Sportsman a Sportsman. The rock-solid, proven design minimizes body roll and keeps the ride smooth.
  • On-Demand AWD: The Polaris exclusive AWD automatically engages all wheels when you need more forward traction and reverts back to 2WD when you do not.
  • Lock & Ride: Exclusive, hassle-free system lets you change out accessories in seconds with no wrenches or additional tools
  • 3-Star PXT Tires: Exclusive 3.4 in. lug tire-cleaning pattern maximizes traction in mud and loose terrain.
  • Front Storage: The largest front storage of any ATV. Large capacity lets you carry loads of gear and still have access to it even with items tied down to the deck.
  • Available Painted Finish: Metallic automotive-style finish is 900% tougher and 9 times more scratch-reisistant than standard plastic is and, if damaged, can be easily repaired.
Engine
  • Engine Type: 4-Stroke
  • Displacement: 498 cc
  • Carburetation: 39mm Throttle Body, EFI
  • Cooling Type: Liquid
  • Starting Type: Electric
Drivetrain
  • Final Drive: Shaft
  • Transmission: P/R/N/L/H
  • Drive System: Automatic PVT, Turf/2WD/AWD/AWD with ADC
  • Engine Braking System: Standard
  • Active Descent Control: Standard
Suspension
  • Front Suspension: MacPherson Strut with 8.2 in. / 20.8 cm travel
  • Fully Independent, progressive rate with anti-roll bar; 9.5 in. / 24.1 cm travel
Brakes
  • Front Brake: Single Lever hydraulic disc
  • Rear Brake: Hydraulic rear foot brake
Tires/Wheels
  • Front Tires: 26 x 8R12; PXT
  • Rear Tires: 26 x 11R12; PXT
  • Wheels: Stamped Steel
Dimensions
  • Wheelbase: 50.5 in. / 128.3 cm
  • Dry Weight: 731 lbs. / 332 kg
  • Length: 83 in. / 210.8 cm
  • Width: 48 in. / 121.9 cm
  • Height: 48 in. / 121.9 cm
  • Seat Height: 33.75 in. / 85.7 cm
Capacities
  • Fuel Capacity: 4.1 gal. / 15.5 l
  • Front Rack/Box Capacity: 90 lbs. / 40.8 kg
  • Rear Rack Capacity: 180 lbs. / 81.6 kg
  • Hitch/Type: Std / Receiver
  • Hitch Towing Capacity: 1225 lbs. / 555.7 kg
Instrumentation
  • Digital Gauge
  • Speedometer
  • Odometer
  • Tachometer
  • Tripmeter
  • Hourmeter
  • Clock
  • Gear Indicator
  • Fuel Gauge
  • Hi Temp/Low Batt lights
  • DC Outlet
Colors
  • Sage Green, Indy Red

Specifications

Engine
Engine Type 4-Stroke
Displacement 499 cc
Engine Cooling Liquid
Fuel System 39 mm Throttle Body. EFI
Starting System Electric
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Single Lever hydraulic disc
Front Tires 26 x 8R12; PXT
Rear Suspension Fully Independent, progressive rate with anti-roll bar
Rear Travel 9.5 in. (24.1 cm)
Rear Brake Type Hydraulic rear foot brake
Rear Tires 26 x 11R12; PXT
Dimensions/Capacities
Dry Weight 731 lbs. (332 kg)
Front Rack Capacity 90 lbs. (40.8 kg)
Rear Rack Capacity 180 lbs. (81.6 kg)
Towing Capacity 1225 lbs. (555.7 kg)
Fuel Capacity 4.1 gal. (15.5 l)
Ground Clearance 11.25 in. (28.6 cm)
Machine Dimensions (LxWxH) 83 x 48 x 48 in. (210.8 x 121.9 x 121.9 cm)
Wheelbase 50.5 in. (128.3 cm)
Drive Train
Drive Train Automatic PVT, Turf/2WD/AWD/AWD with ADC
Final Drive Shaft
Transmission P/R/N/L/H
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Colors Sage Green, Indy Red

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Sportsman® 500 EFI
Style Sport
MSRP* $6,999.00
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Single Lever hydraulic disc
Front Tires 26 x 8R12; PXT
Rear Suspension Fully Independent, progressive rate with anti-roll bar
Rear Travel 9.5 in. (24.1 cm)
Rear Brake Type Hydraulic rear foot brake
Rear Tires 26 x 11R12; PXT
Frame
Dimensions/Capacities
Dry Weight 731 lbs. (332 kg)
Front Rack Capacity 90 lbs. (40.8 kg)
Rear Rack Capacity 180 lbs. (81.6 kg)
Towing Capacity 1225 lbs. (555.7 kg)
Fuel Capacity 4.1 gal. (15.5 l)
Ground Clearance 11.25 in. (28.6 cm)
Machine Dimensions (LxWxH) 83 x 48 x 48 in. (210.8 x 121.9 x 121.9 cm)
Wheelbase 50.5 in. (128.3 cm)
Drive Train
Drive Train Automatic PVT, Turf/2WD/AWD/AWD with ADC
Final Drive Shaft
Transmission P/R/N/L/H
Engine
Engine Type 4-Stroke
Displacement 499 cc
Bore x Stroke
Cylinders
Engine Cooling Liquid
Fuel System 39 mm Throttle Body. EFI
Starting System Electric
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting
Colors Sage Green, Indy Red
