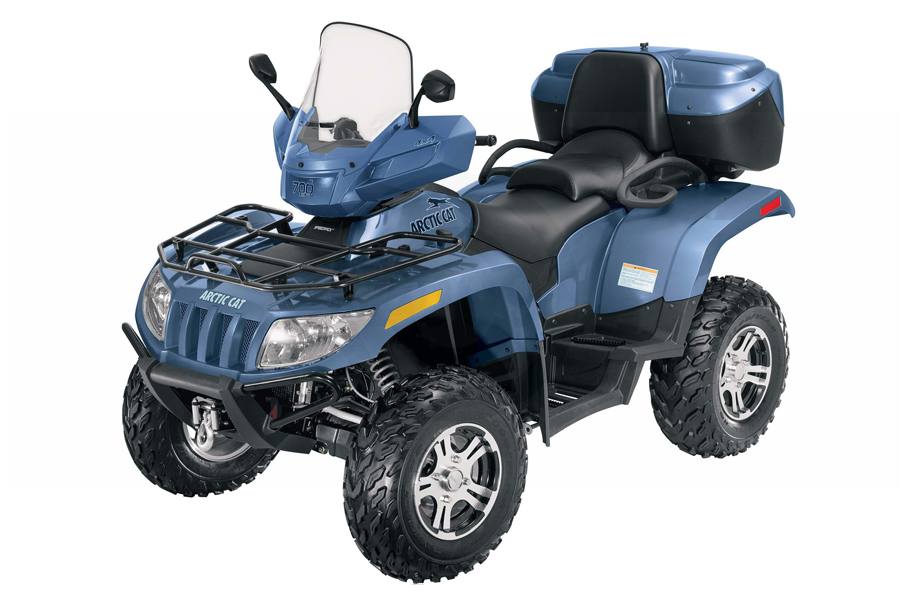

2009 Arctic Cat TRV 700 H1 EFI Cruiser
Request a Quote Financing Calculator Request a Brochure
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Spend an afternoon with your 2 loves.


You no longer have to decide who or what to spend the day with. With the Cruiser's 2-up seating, you can put one love on the back seat and take the other over the hills and through the woods. It also features ride-in suspension, allowing for a lower center of gravity for performance handling while maintaining 11" of ground clearance.

  • 700 H1 EFI Engine: Race-bred 695cc liquid-cooled EFI features a single overhead cam and a single cylinder. The "H" stands for its hemisperical combustion chamber, which delivers more efficient combustion resulting in better performance. Electronic Fuel Injection ensures easy starts and consistent performance in various climates or altitudes. Push the throttle with this one, it answers big-time.
  • Automotive-Style Paint: Distinctive, deep Steel Blue finish has the looks and durability of the automobile industry. So don't worry about running this machine through mud or woods. It'll come clean in the wash and maintain that lovely shine.
  • New 12" Machined Aluminum Rims: Newly styled heavy-duty polished aluminum rims with painted black inlays feature an optimized scrub radius minimizing rider steering effort.
  • Ride-In Suspension: Fully independent, race-inspired suspension features a lower suspension profile and a lower seat design, resulting in a lower center of gravity yet maintaining 10" of ground clearance. That means more confidence hammering thorugh tight corners on the trail, as well as clearng big, nasty obstacles off the trail.
  • Cruiser Comfort Features: Protective 2-piece fairing with windshield and cup holder keeps driver and passenger warmer, and anti-swirl vent design keeps dust and debris away from driver's face. Heated handlebars and passenger handgrips for added comfort on cool evenings. A plush passenger seat. And a cool lockable touring case in back, perfect for things like a cooler and a couple of helmets. This machine is designed for a day , or several days of travel.
Specifications
  • Displacement (cc): 695
  • Engine Type: SOHC, 4-Stroke, 4-Valve
  • Bore & Stroke (mm): 102 x 85
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
  • Drive System: 2/4 WD + Electric Diff Lock
  • Overall Width (in./cm): 47.5/121
  • Overall Height (in./cm): 55.5/140.97
  • Overall Length (in./cm): 100.5/255.27
  • Wheelbase (in./cm): 58/147.3
  • Suspension Travel — Front (in./cm): 10/25.4
  • Suspension Travel — Rear (in./cm): 10/25.4
  • Ground Clearance (in./cm): 11/27.94
  • Suspension Type — Front: Double A-Arm
  • Suspension Type — Rear: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Tires — Front: 25x8-12
  • Tires — Rear: 25x10-12
  • Max Fuel Capacity (gal./liters): 5.5/20.8
  • Rack Capacity — Front (lbs./kg): 100/45.4
  • Rack/Box/Flatbed Capacity — Rear (lbs./kg): 35/15.9 Touring Case
  • Towing Capacity (lbs./kg): 1050/477
  • Alternator Capacity (amps): 25
  • Speedometer: Analog
  • Odometer: Digital
  • Dry Weight (lbs./kg): 758/344
  • Minimum Operator Age: 16
  • Available Colors: Steel Blue Metallic Paint
  • Special Features: Touring Case, Hand Warmers, 2-Piece Fairing, Mirrors, Aluminum Wheels, Winch
NOTES:

Specifications subject to change without notice.


Specifications

Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore x Stroke 102 mm x 85 mm
Engine Cooling Liquid w/Fan
Alternator 25 amp
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Dimensions/Capacities
Dry Weight 758 lbs (344 kg)
Front Rack Capacity 100 lbs (45.4 kg)
Rear Rack Capacity 35 lbs (15.9 kg) Touring Case
Towing Capacity 1050 lbs (477 kg)
Fuel Capacity 5.5 gal (20.8 l)
Ground Clearance 11 in. (27.94 cm)
Machine Dimensions (LxWxH) 100.5 x 47.5 x 55.5 in. (255.27 x 121 x 140.97 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Electric Diff Lock
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
General
Speedometer Analog
Odometer Digital
Colors Steel Blue Metallic Paint

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model TRV 700 H1 EFI Cruiser
Style Multi-Rider
MSRP* $9,929.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 25x8-12
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 25x10-12
Frame
Dimensions/Capacities
Dry Weight 758 lbs (344 kg)
Front Rack Capacity 100 lbs (45.4 kg)
Rear Rack Capacity 35 lbs (15.9 kg) Touring Case
Towing Capacity 1050 lbs (477 kg)
Fuel Capacity 5.5 gal (20.8 l)
Ground Clearance 11 in. (27.94 cm)
Machine Dimensions (LxWxH) 100.5 x 47.5 x 55.5 in. (255.27 x 121 x 140.97 cm)
Wheelbase 58 in. (147.3 cm)
Drive Train
Drive Train 2/4 WD + Electric Diff Lock
Final Drive
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Engine
Engine Type SOHC, 4-Stroke, 4-Valve
Displacement 695 cc
Bore x Stroke 102 mm x 85 mm
Cylinders
Engine Cooling Liquid w/Fan
Fuel System
Starting System
Alternator 25 amp
General
Speedometer Analog
Tachometer
Odometer Digital
Lighting
Colors Steel Blue Metallic Paint
Warranty

Current Promotions

There are currently no promotions available for this product.
