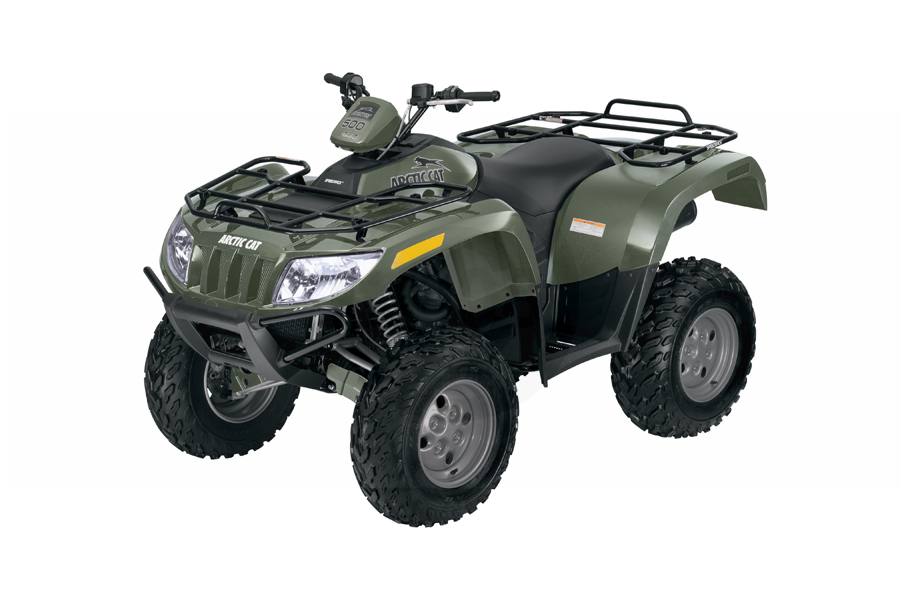

2008 Arctic Cat 500 4x4 Manual

Request a Quote

Financing Calculator

Request a Brochure

Marsh Green

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Request a Brochure

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

WHEN THE GOING GETS TOUGH, SHIFT.

Flipping through the gears of a muscular, liquid-cooled four stroke powerplant. Thats how you get past any roadblock the world can put in front of you.

Hydraulic Brakes: A proven hydraulic system with floating calipers front and rear provides control in ever-changing and demanding conditions.
High Intensity Headlights: Featuring the latest in multiple-reflector technology, our distinctive Cat Eye headlights will brighten the way even on a twisting trail.
Speedracks: New and redesigned slim line speedracks allow unmatched versatility with a large selection of accessory attachments. Install with a pin and off you go.
2-Inch Receiver Hitch: Our automotive style receiver hitch makes towing a breeze while saving you time and money. The 500 offers a 1,050 pound towing capacity to help move your everyday payloads.
2WD/4WD: On-the-fly electric shift takes you from 2WD to 4WD with the simple flip of a switch.
Full Floorboards: Our floorboard with integrated foot pegs are far more supportive and comfortable on long-distance trips and are shielded by wide contoured fenders.
4-Stoke Power: Rugged power is here. This liquid-cooled engine maintains consistent performance in any condition. 5-speed manual transmission includes Hi/Lo range.

Specifications

Displacement (cc): 493
Engine Type: SOHC, 4-Stroke, 4-Valve
Bore & Stroke (mm): 87.5 x 82
Cooling System: Liquid w/Fan
Transmission: 5-Speed Manual w/Hi/Lo Range Reverse
Drive System: 2/4 WD + Diff Lock
Overall Width (in./cm): 47.5/121
Overall Height (in./cm): 49.3/125.2
Overall Length (in./cm): 84.8/215.4
Wheelbase (in./cm): 50/127
Suspension Travel — Front (in./cm): 10/25.4
Suspension Travel — Rear (in./cm): 10/25.4
Ground Clearance (in./cm): 12/30.5
Suspension Type — Front: Double A-Arm
Suspension Type — Rear: Double A-Arm
Front Brakes: Hydraulic Disc
Rear Service Brake: Hydraulic Disc
Tires — Front: 25x8-12
Tires — Rear: 25x10-12
Wheel Width — Front (in./cm): 7/17.8
Wheel Width — Rear (in./cm): 8/20.3
Max Fuel Capacity (gal./liters): 6.5/24.6
Rack Capacity — Front (lbs./kg): 100/45.4
Rack Capacity — Rear (lbs./kg): 200/90.8
Towing Capacity (lbs./kg): 1050/477
Alternator Capacity (amps): 25
Speedometer: Digital
Odometer: Digital
Dry Weight (lbs./kg): 654/297
Min. Operator Age: 16

Specifications

Engine
Engine Type	SOHC, 4-Stroke, 4-Valve
Displacement	493 cc
Bore x Stroke	87.5 x 82 mm
Engine Cooling	Liquid w/Fan
Alternator	25 amps
Chassis
Front Suspension	Double A-Arm
Front Travel	10 in. (25.4 cm)
Front Brake Type	Hydraulic Disc
Front Tires	25x8-12
Rear Suspension	Double A-Arm
Rear Travel	10 in. (25.4 cm)
Rear Brake Type	Hydraulic Disc
Rear Tires	25x10-12
Dimensions/Capacities
Front Rack Capacity	100 lbs. (45.4 kg)
Rear Rack Capacity	200 lbs. (90.8 kg)
Towing Capacity	1050 lbs. (477 kg)
Fuel Capacity	6.5 gal. (24.6 l)
Ground Clearance	12 in. (30.5 cm)
Machine Dimensions (LxWxH)	84.8" x 47.5" x 49.3" ( 215.4 x 121 x 125.2 cm)
Wheelbase	50 in. (127 cm)
Drive Train
Drive Train	2/4 WD + Diff Lock
Transmission	5-Speed Manual w/Hi/Lo Range Reverse
General
Speedometer	Digital
Odometer	Digital
Colors	Marsh Green, Red

Compare Models

Chassis

Year	2008
Manufacturer	Arctic Cat
Model	500 4x4 Manual
Style	Utility
MSRP*	$6,499.00
Front Suspension	Double A-Arm
Front Travel	10 in. (25.4 cm)
Front Brake Type	Hydraulic Disc
Front Tires	25x8-12
Rear Suspension	Double A-Arm
Rear Travel	10 in. (25.4 cm)
Rear Brake Type	Hydraulic Disc
Rear Tires	25x10-12
Frame
Dimensions/Capacities
Dry Weight
Front Rack Capacity	100 lbs. (45.4 kg)
Rear Rack Capacity	200 lbs. (90.8 kg)
Towing Capacity	1050 lbs. (477 kg)
Fuel Capacity	6.5 gal. (24.6 l)
Ground Clearance	12 in. (30.5 cm)
Machine Dimensions (LxWxH)	84.8" x 47.5" x 49.3" ( 215.4 x 121 x 125.2 cm)
Wheelbase	50 in. (127 cm)
Drive Train
Drive Train	2/4 WD + Diff Lock
Final Drive
Transmission	5-Speed Manual w/Hi/Lo Range Reverse
Engine
Engine Type	SOHC, 4-Stroke, 4-Valve
Displacement	493 cc
Bore x Stroke	87.5 x 82 mm
Cylinders
Engine Cooling	Liquid w/Fan
Fuel System
Starting System
Alternator	25 amps
General
Speedometer	Digital
Tachometer
Odometer	Digital
Lighting
Colors	Marsh Green, Red
Warranty
