Arctic Cat 650 H1 4X4 AUTOMATIC TBX ROB'S CYCLE PATTONSBURG, MO (660) 367-4407

Showcase Product Detail

Showcase » Arctic Cat » 650 H1 4X4 AUTOMATIC TBX

	Call for Price (660) 367-4407

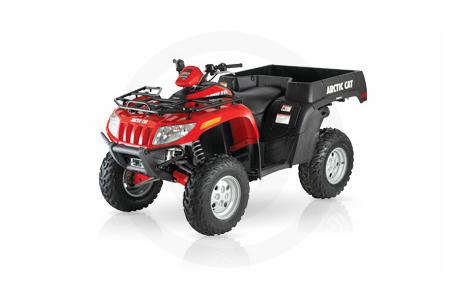

2007 Arctic Cat 650 H1 4X4 AUTOMATIC TBX

Request a Quote

Financing Calculator

Request a Brochure

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Request a Brochure

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Model: 650 H1 4x4 Automatic TBX
Displacement (cc): 641
Engine Type: SOHC 4-stroke 4-valve
Bore & Stroke (mm): 98 x 85
Cooling System: Liquid w/ fan
Transmission: Automatic CVT w/ EBS
Drive System: 2 / 4 WD + Diff Lock
Overall Width: 47
Overall Height: 49
Overall Length: 98
Wheelbase: 58
Suspension Travel Front: 10
Suspension Travel Rear: 10
Ground Clearance: 12
FIS Suspension Type - Front: Double A-Arm
FIS Suspension Type - Rear: Double A-Arm
Front Brakes: Hydraulic Disc
Rear Service Brake: Hydraulic Disc
Tire Front: 25x8-12
Tire Rear: 25x10-12
Max Fuel Capacity (gal/ltr): 5.5 / 20.8
Rack Capacity - Front: 100
Rack Capacity - Rear: 300
Towing Capacity: 1050
Alternator Capacity: 25 Amps
Speedometer: Digital
Odometer: Digital
Dry Weight (lbs): 787

Specifications

Engine
Engine Type	SOHC 4-stroke 4-valve
Displacement	641 cc
Bore x Stroke	98 x 85
Cylinders	1
Engine Cooling	Liquid w/ fan
Alternator	25 amps
Chassis
Front Suspension	Double A-arm
Front Travel	10 in.
Front Brake Type	Hydraulic Disc
Front Tires	25 x 8-12
Rear Suspension	Double A-arm
Rear Travel	10 in.
Rear Brake Type	Hydraulic Disc
Rear Tires	25 x 10-12
Dimensions/Capacities
Dry Weight	787 lbs.
Front Rack Capacity	100 lbs.
Rear Rack Capacity	300 lbs.
Towing Capacity	1050 lbs.
Fuel Capacity	5.5 gal. / 20.8 l
Ground Clearance	12 in.
Machine Dimensions (LxWxH)	98" x 47" x 49"
Wheelbase	58 in.
Drive Train
Drive Train	2 / 4 WD + Diff. Lock
Transmission	Automatic CVT w/ EBS
General
Speedometer	Standard: Digital
Odometer	Standard: Digital

Compare Models

Chassis

Year	2007
Manufacturer	Arctic Cat
Model	650 H1 4X4 AUTOMATIC TBX
Style	Utility
MSRP*	$7,399.00
Front Suspension	Double A-arm
Front Travel	10 in.
Front Brake Type	Hydraulic Disc
Front Tires	25 x 8-12
Rear Suspension	Double A-arm
Rear Travel	10 in.
Rear Brake Type	Hydraulic Disc
Rear Tires	25 x 10-12
Frame
Dimensions/Capacities
Dry Weight	787 lbs.
Front Rack Capacity	100 lbs.
Rear Rack Capacity	300 lbs.
Towing Capacity	1050 lbs.
Fuel Capacity	5.5 gal. / 20.8 l
Ground Clearance	12 in.
Machine Dimensions (LxWxH)	98" x 47" x 49"
Wheelbase	58 in.
Drive Train
Drive Train	2 / 4 WD + Diff. Lock
Final Drive
Transmission	Automatic CVT w/ EBS
Engine
Engine Type	SOHC 4-stroke 4-valve
Displacement	641 cc
Bore x Stroke	98 x 85
Cylinders	1
Engine Cooling	Liquid w/ fan
Fuel System
Starting System
Alternator	25 amps
General
Speedometer	Standard: Digital
Tachometer
Odometer	Standard: Digital
Lighting
Colors
Warranty

Current Promotions

There are currently no promotions available for this product.
